I2C Bus Protocol

The I2C bus physically consists of 2 active wires and a ground connection. The active wires, called SDA and SCL, are both bi-directional. SDA is the Serial DAta line, and SCL is the Serial CLock line.

Every device hooked up to the bus has its own unique address, no matter whether it is an MCU, LCD driver, memory, or ASIC. Each of these chips can act as a receiver and/or transmitter, depending on the functionality. Obviously, an LCD driver is only a receiver, while a memory or I/O chip can be both transmitter and receiver.

The I2C bus is a multi-master bus. This means that more than one IC capable of initiating a data transfer can be connected to it. The I2C protocol specification states that the IC that initiates a data transfer on the bus is considered the Bus Master. Consequently, at that time, all the other ICs are regarded to be Bus Slaves.

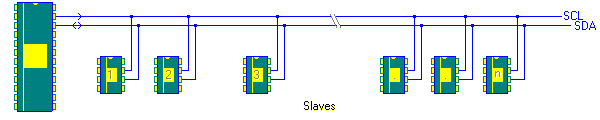

As bus masters are generally microcontrollers, let's take a look at a general 'inter-IC chat' on the bus. Lets consider the following setup and assume the MCU wants to send data to one of its slaves (also see here for more information; click here for information on how to receive data from a slave).

I2C Bus

First, the MCU will issue a   START  condition. This acts as an 'Attention' signal to all of the connected devices. All ICs on the bus will listen to the bus for incoming data.

Then the MCU sends the ADDRESS of the device it wants to access, along with an indication whether the access is a Read or Write operation (Write in our example). Having received the address, all IC's will compare it with their own address. If it doesn't match, they simply wait until the bus is released by the stop condition (see below). If the address matches, however, the chip will produce a response called the ACKNOWLEDGE signal.

Once the MCU receives the acknowledge, it can start transmitting or receiving DATA. In our case, the MCU will transmit data. When all is done, the MCU will issue the STOP condition. This is a signal that the bus has been released and that the connected ICs may expect another transmission to start any moment.

We have had several states on the bus in our example: START, ADDRESS, ACKNOWLEDGE, DATA , STOP. These are all unique conditions on the bus. Before we take a closer look at these bus conditions we need to understand a bit about the physical structure and hardware of the bus.
